Ground screw M ⌀76, 1000 mm

Ground screw M76x1000x2.0 with M16 and round flange plate

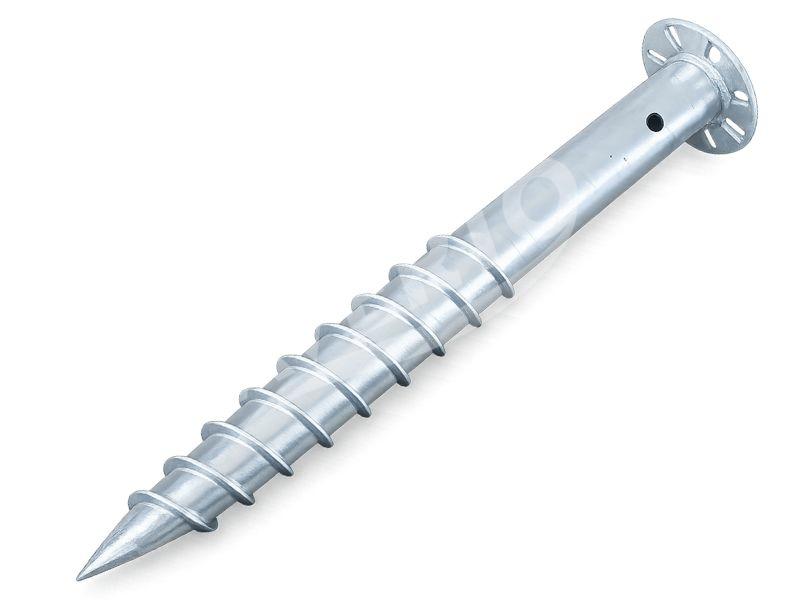

Ground screw M76x1000x2.0 with M16 is a reliable choice when you need a stable foundation without concrete. With a 1000 mm length, this model is well suited for light and medium-duty outdoor structures where secure fixing, quick installation and long-term durability matter.

The ground screw is made of steel and finished with a hot dip galvanized protective coating. The round flange plate at the top and the M16 thread make it easy to fasten wooden or metal structural elements and create a solid base for a wide range of projects.

Where to use a 1000 mm ground screw

Ground screw 1000 mm is a practical solution for decking, canopies, gazebos, pergolas, lightweight garden buildings, fence posts, sign structures and other projects where a deeper and stronger screw-in foundation is needed. Similar products in German retail listings are commonly positioned for terraces, carports, pavilions, greenhouses, garden houses and fences.

It is also a good fit for seasonal or temporary structures where you want to avoid concrete work, digging and unnecessary downtime. When matched correctly to the site and load requirements, a ground screw helps speed up installation and provides a stable support point outdoors.

Construction and material

The pipe outer diameter is 76 mm, length is 1000 mm and wall thickness is 2.0 mm. The spiral section length is 400 mm, with 10 spiral turns and a blade size of 10 x 2.0 mm. The top round flange plate measures 160 x 6 mm.

The surface is hot dip galvanized with an average zinc layer thickness of approximately 40 μm. This coating helps protect the steel against corrosion and supports longer service life in outdoor conditions exposed to moisture and temperature changes.

Main advantages

• No concrete required – cleaner installation and faster progress on site
• 1000 mm length – deeper and more stable support for outdoor structures
• M16 thread – secure and accurate fastening

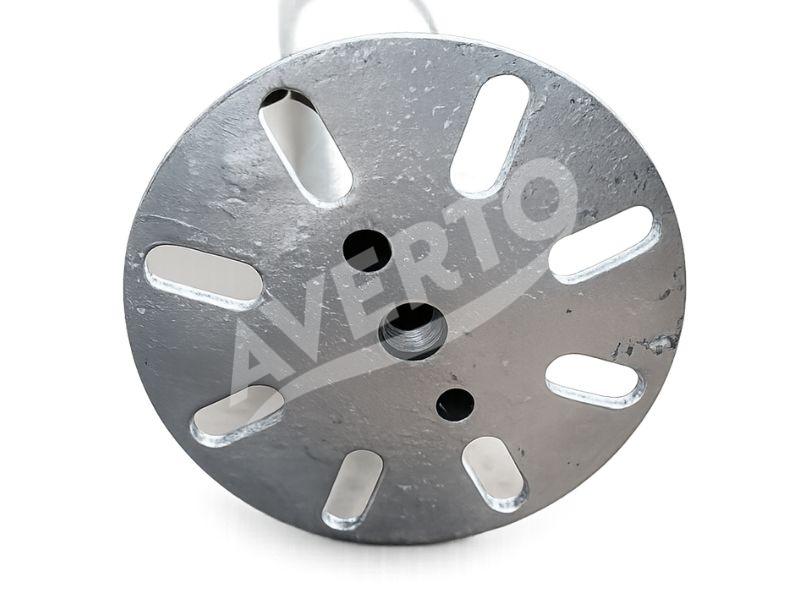

• Round flange plate – stable connection point for structural elements
• hot dip galvanized finish – added corrosion protection outdoors
• Removable solution – suitable for seasonal or relocatable projects

Technical specifications

• Type: ground screw with round flange plate
• Size: M76x1000x2.0 - M16
• Pipe outer diameter: 76 mm
• Length: 1000 mm
• Wall thickness: 2.0 mm
• Thread: M16
• Round flange plate: 160 x 6 mm
• Spiral length: 400 mm
• Spiral turns: 10
• Spiral blade: 10 x 2.0 mm
• Surface: hot dip galvanized

Ground screw M76x1000x2.0 with M16 is a practical solution when you need a strong, quick-to-install and durable base for a deck, canopy, posts or another outdoor structure. Choose a foundation that helps you build faster and with confidence.
